Product parameters
| Model | BRC200H90065 | DCR | 65.0Ω |
| Sensitivity | 99.5dB@1000Hz | MPO @ peak | 106.0dB |
| Nominal Drive | 160mV RMS | Acoustic Load | 10.0mm x 1.0mm tubing into 2CC |
| Port Location | 12S | Back vent | NO |
*the website data is for reference only. In case of any change or adjustment, it is subject to the actual product without notice.

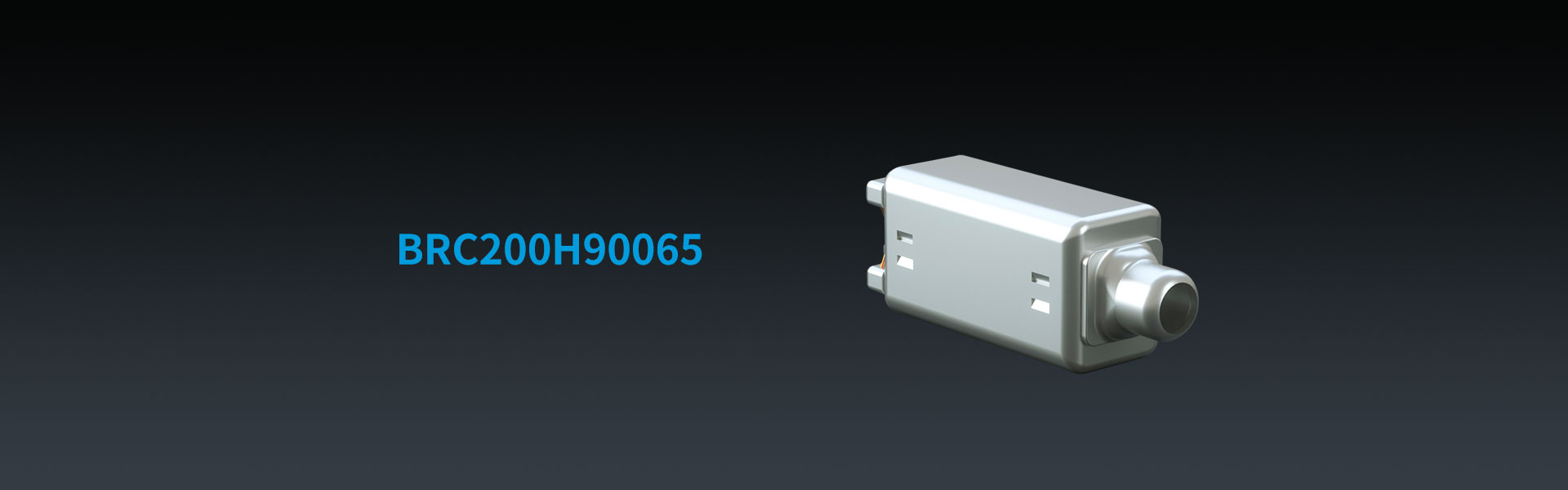

Appearance Size

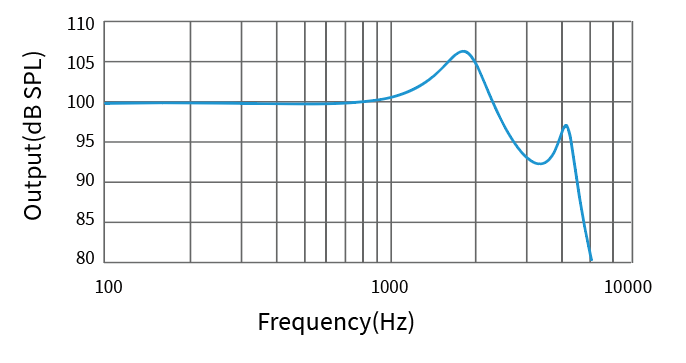

Frequency curve
