Product parameters
| Model | BTC300C90012 | DCR | 12.5Ω |
| Sensitivity | 94.5dB@1000Hz | MPO @ peak | 117.0dB |
| Nominal Drive | 94mV RMS | Acoustic Load | 10.0mm x 1.0mm tubing into IEC711 |
| Port Location | 12N | Back vent | NO |
*the website data is for reference only. In case of any change or adjustment, it is subject to the actual product without notice.

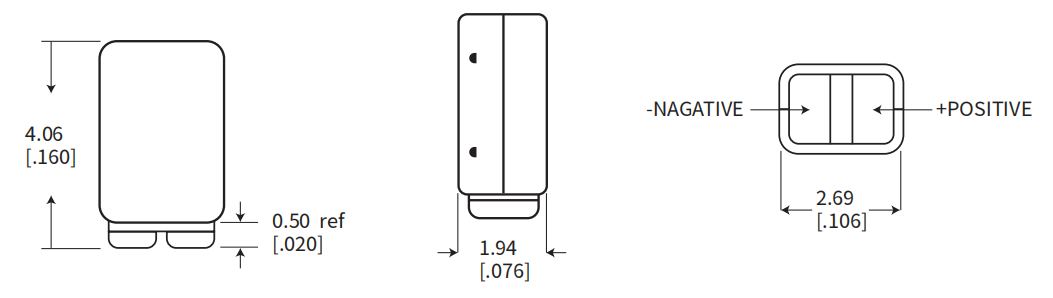

Appearance Size

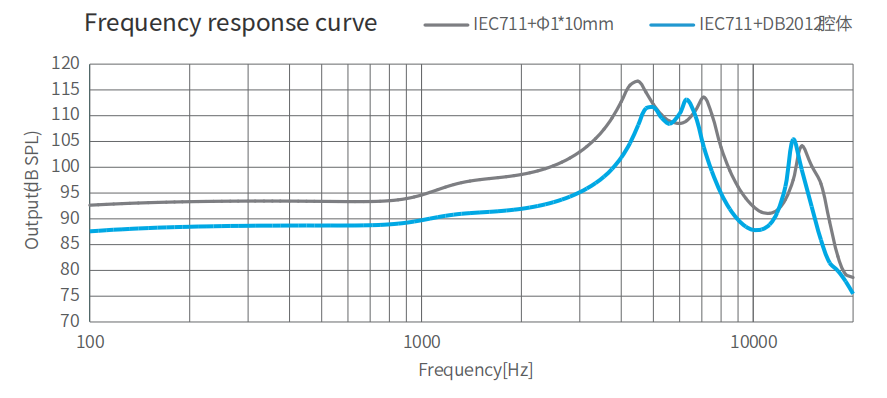

Frequency curve
